淘宝机 JCS-TB series express box flexo printer,slotter machine
| 电话： | 0317-7721552 |
|---|---|
| 传真： | 0317-7892552 |
| 邮箱： | junshengjx@126.com |
| 留言咨询 更多信息 | |
| 分享： |
|
摘要

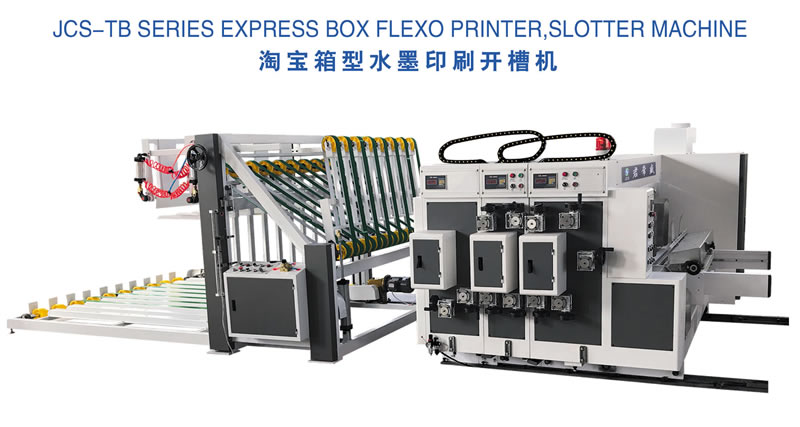

淘宝机 JCS-TB series express box flexo printer,slotter machine
产品介绍
淘宝机 JCS-TB series express box flexo printer,slotter machineModel
JCS-TB-2000
Max. machine speed
100-120 PCS/min
Max. feeding size
1700mm*600mm
Width of printing roller
1600mm
Min. feeding size
450mm*180mm
Min. slotting interval
Negative knife (A*B)
150*50mm
Positive knife (A*B)
80*80mm
70mm
Dimension (Length*Width*Height)
3700*2500*1600mm
机器概要
本机采用人工上纸全自动前缘送纸系统，具有一次性完成瓦楞纸板的印刷、开槽、切角、分边、滚线等功能，该机及开槽深度均为电动调整，并附有尺标读数。开槽相位调整机构为行星齿轮结构，采用电动电脑式360度调整，上下开槽刀盘及压线轮同步左右移动、（备注：专用工具调整左右移动）,具有使用和维修方便,小巧精 致、是专业针对小纸箱开槽成型的设备。
Machine overview
This machine adopts the automatic front edge feeding system of manual feeding paper. It has the functions of printing, slotting, chamfering, edge dividing, rolling line, etc. of corrugated board at one time. The machine and slotting depth are all electrically adjusted with ruler reading attached. The slotting phase adjustment mechanism is a planetary gear structure, which adopts the electric computer type 360 degree adjustment. The upper and lower slotting cutter heads and wire pressing wheels move left and right synchronously. (Note: special tools adjust left and right movements). It is convenient for use and maintenance, small and exquisite, and is a professional equipment for slotting small cartons.
