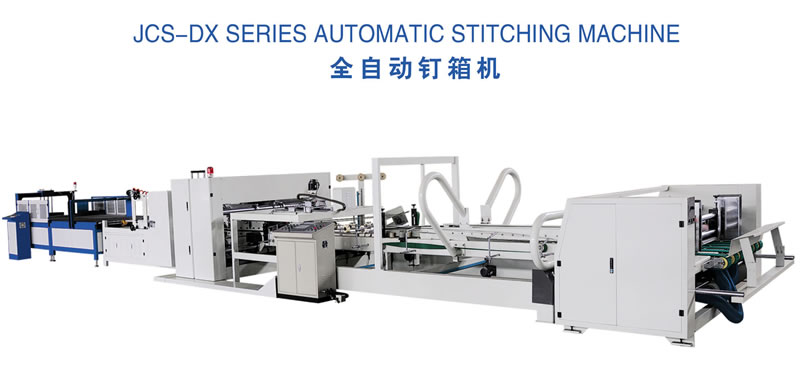

全自动钉箱机 JCS-DX series automatic stitching machine
产品介绍
全自动钉箱机 JCS-DX series automatic stitching machinemaximum(A+B)*2
3000mm
the minimum length A
250mm
minimum(A+B)*2
900mm
the maximum height D
1150mm
maximum(C+D+C)
1200mm
the minimum height D
250mm
minimum(C+D+C)
350mm
Nail tongue width E
35-40mm
the minimum roll cove C
25mm
Mechanical length
19000mm
the biggest shake cove C
560mm
Machine width
4450mm
the maximum width B
1320mm
Machine weight(T)
20
the minimum width B
200mm
s peed ( nail/min)
800
the maximum length A
1320mm
Order
1-99
Nail distance(m/m)
30-80
Nailing s peed
120m/minute
Sticky box s peed
200m/minute
Power ( kw )
60
机器概要
1.本机全电脑控制自动调谐单台，操作方便，操作简单；可储存1000颗钉子单台。
2.3-5分钟调整大小，简单快捷。
3.伺服电机钉头功率，机械速度：800钉/分钟。
4.送纸部采用真空吸附皮带送纸，保证纸箱不歪斜，机前送纸带，皮带高度可单独调整，增加使用寿命。
5.用侧面研磨装置将纸片放入纸张中，可使纸张整齐光滑。
6.本机设计具有箱塑功能，保证钉中无剪刀，整齐不歪斜；前后机器保证剪刀口不大于正负2毫米。
7.本机可钉三层、五层、七层纸箱（先声明后订货）。
Machine overview
1. The machine is fully computer-controlled and automatically tunes a single set, which is easy to operate and simple to operate. It can store 1000 nails in a single set.
2. 3-5 minutes to adjust the size, simple and fast.
3. Power of servo motor nail head, mechanical s peed: 800 nails / min.
4. The paper feeding part adopts vacuum absorption belt to feed paper, to ensure that the cartons are not skewed. The paper belt is fed in front of the machine, and the height of the belt can be adjusted separately to increase the service life.
5. Use the side grinding device to put the paper into the paper to make the paper neat and smooth.
6. The design of this machine has the function of box molding to ensure that there are no scissors in the nails, and that they are neat and not skewed; the front and rear machines ensure that the scissors mouth is not more than plus or minus 2mm.
7. This machine can nail three-layer, five layer and seven layer cartons (order after declaration).
