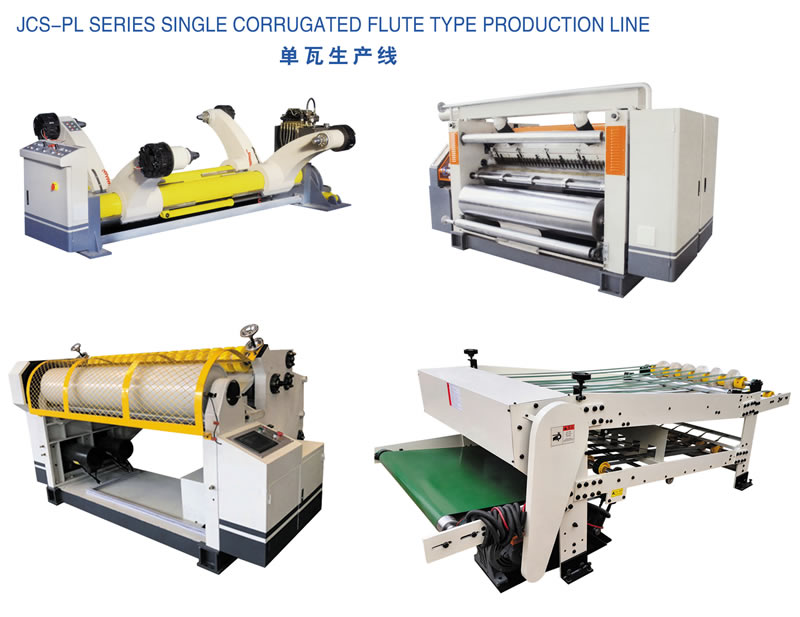

生产线 JCS-PL series single corrugated flute type production line
| 电话： | 0317-7721552 |
|---|---|
| 传真： | 0317-7892552 |
| 邮箱： | junshengjx@126.com |
| 留言咨询 更多信息 | |
| 分享： |
|
摘要
生产线 JCS-PL series single corrugated flute type production line
产品介绍
生产线 JCS-PL series single corrugated flute type production line
No.
Name
Qty
Feature
1
RS Electrical Mill Roll Stand
( with trolley and track2
--Toothed chuck,manual disc brakes,pneumatic mechanically actuated lift,panning left and right on the middle
--Guide rail length is 4500 mm, the trolley adopt 10 mm plate welding2
SF-A10 Single Facer
1
--Corrugated rollerφ280mm, 48CrMo high quality alloy steel,plating chromed --Independent gearbox,universal joint drive structure
--Cylinder control lifting
--Pneumatic control glue,circulating supply glue3
NC Sheet Cutter
1
--Keeping orders of 99
4
Sheet Rotary Stacking
1
--Auto counting,auto output with setting height
--Max stacking height 100mm主要特点
单层瓦楞纸板生产线是由轧机辊架机、单面机和带堆垛机的数控旋转切纸机组成的半自动生产线。采用卷筒纸为纸材，连续生产并切割成所需规格的各种楞型的纸板。生产工艺先 进，效率高，批量适应性强，是中小型纸箱厂技术改造的理想设备。
main features
The single-layer corrugated board production line is a semi-automatic production line composed of roll stand machine, single-sided machine and CNC rotary paper cutter with stacker. Using web paper as paper material, we can continuously produce and cut all kinds of corrugated board of required specifications. With advanced production technology, high efficiency and strong batch adaptability, it is an ideal equipment for technical transformation of small and medium-sized carton factories.
