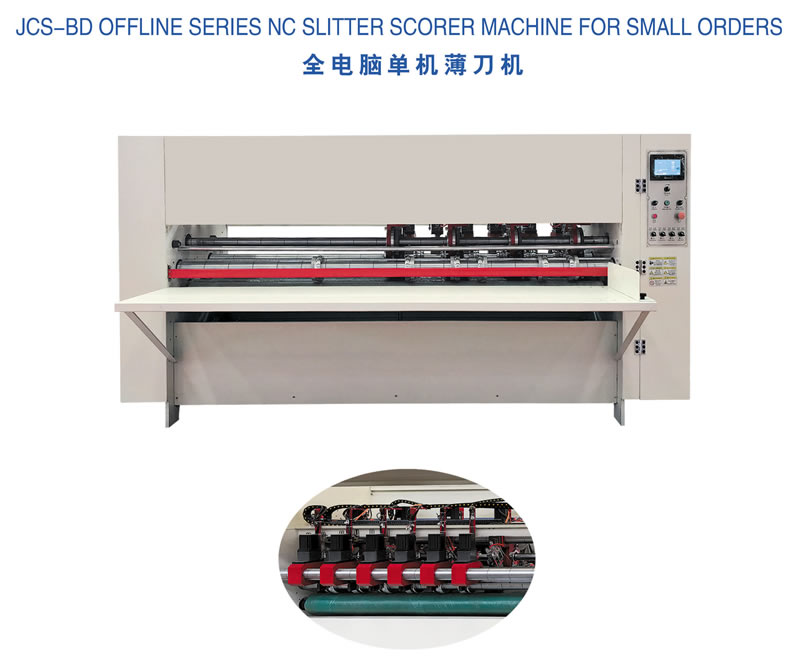

薄刀机 电脑单机 JCS-BD offline series NC slitter scorer machine for small orders

薄刀机电脑单机 JCS-BD offline series N

Model	JCS-BD-A2750	JCS-BD-A3250
QTY of blade/scorer	4/6 5/8 6/10
Max. speed	180m/min	180m/min
Max.feeding width	The Max.slitting between the two blades:2250mm	The Max.slitting between the two blades:2750mm
Max.slitting width	2600mm	3100mm
Min.slitting width	180mm	180mm
Min.feeding length	180mm	450mm
Min.scoring distance	*40135mm**	*40135mm**
Gap adjustment	Manual	Manual
Main motor power	10kw	12kw
*Dimensions LWH*	*157034501500mm*	*157039501500mm*
Weigh	2780kg	2980kg
